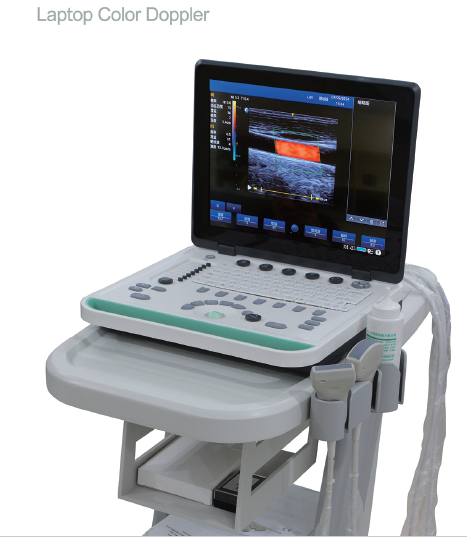

Laptop Color Doppler
Laptop Color Doppler - Imagen 2
Laptop Color Doppler - Imagen 3
Laptop Color Doppler - Imagen 4

Laptop Color Doppler

  • Intuitive context – dependent soft key
  • USB image transfer and software upgrade
  • Language of UI: Chinese and English
  • Peripheral Ports:
  • Two Transducer Ports
  • Two USB Ports (vi) (can connect to external monitor or projector)
  • Remote: Video Output; S Video; LAN; Power Input; Foot switch
  • Net weight: Approx 8.5kg
  • Power supply: 100 – 240VAC, 50Hz/60Hz
  • Dimensions: 400mm×340mm×172mm
  • Standard Configuration:
  • One convex array probe(2.5/3.5/4.5/5.0Hz, 0.9MHz)
  • Zoom: 10 times
  • Cine – loop: standard 982 – frame cine loop, can up to 6400 frames
  • Integrated Hard disk: 500GB
  • Probe connection: 2
  • 8 – segment TGC
  • Back – lit control panel
  • Internal lithium battery Supporting normal diagnosis up to 1.5 hours
  • Inverted Harmonic imaging
  • PseudoColor imaging mode
  • Annotation: color bar for quick comment
  • Graph/Text report function
  • DICOM storage: SCU
  • User – defined exam settings
  • User – defined parameters (Examination/Acquire Set)
  • Intuitive soft key at the bottom of screen, clicking supported
  • Beam steering for better needle visualization
  • Patient Information management system
  • Fetal trending – Fetal growth curve graph
  • Fetal growth rate calculation
  • Lithotripsy function supported
  • Bipocy function supported
  • Support polyembryony measurement up to six
Categoría: Marca:

Optional:

Transvaginal , linear, rectal, micro-convex    probe;

Trolley ; Video  printer ; Laser  printer

Standard        configuration:

One host , one convex probe , one aluminum trunk

Arm system , powerful function

Also can customized the color , such as white &gray
